QUICRUN ESC 1625 BRUSHED 25A FOR 1/16, 1/18

Referência: HW30120000

25,95 €

Com IVA

✅ Stock Online (Envio 1 a 3 dias úteis)

Quantidade

Adicionar à lista de desejos

Pagamentos seguros

Envio em 24h

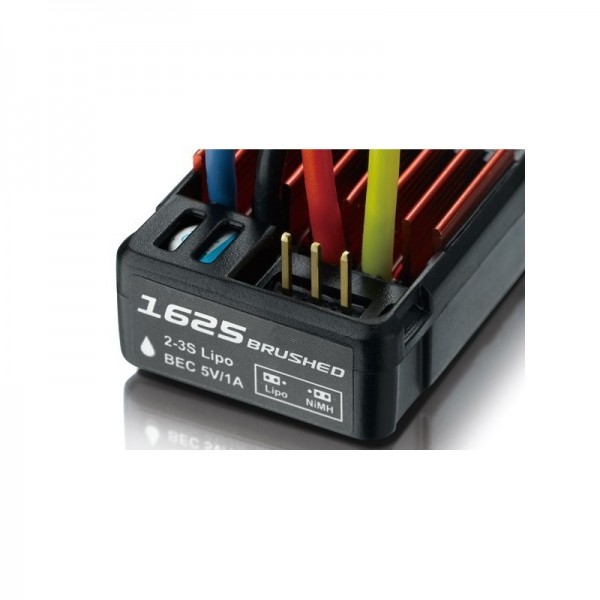

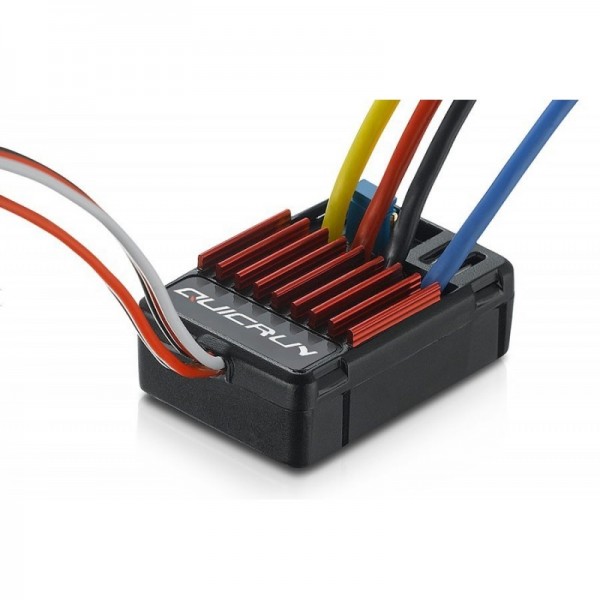

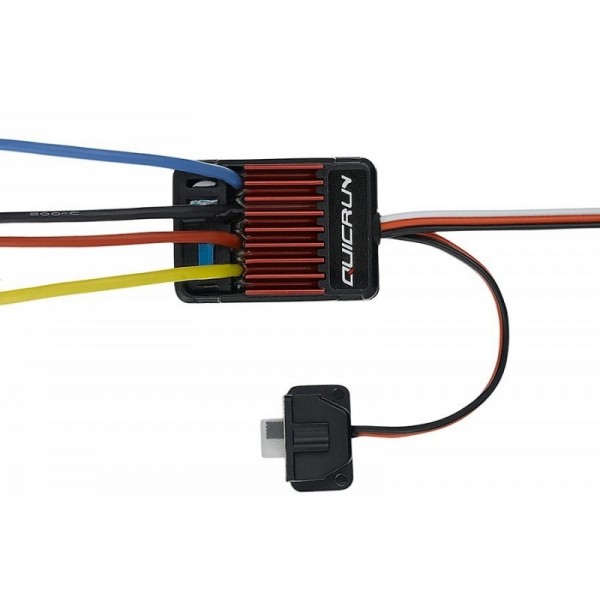

QuicRun ESC 1625 Brushed 25A for 1/16, 1/18
HW30120000

QuicRun1625

This speedo is suitable for all-weather condition races because of its water-proof and dust-proof design.

It has these outstanding features:

Small size with built-in capacitor module.
The Forward/Reverse/Brake running mode fits for sport races of various vehicles.
Great current endurance capability.
Automatic throttle range calibration, easy to use.
Easy to set the ESC parameters with jumpers.
Multiple protections like Low voltage cut-off protection, Over-heat protection and Throttle signal loss protection to extend the service life.
Size - 34(L)X24(W)X14(H)mm

Suitable for 1/18 and 1/16 scale models.

Programmable Items

QuicRun/QuicRun1625
Installation & Connection
WP1625

Turn off the ESC switch, wire the battery, motor, ESC, servo, receiver according to the following diagram. Recheck the wiring to ensure all connections are correct before getting into the next step.
1) Once the power is wrongly connected (that means the battery polarity is mistakenly reversed ), irreparable damage may occur to the ESC and batteries. Therefore, please pay close attention to the battery polarity.
2) Please swap the two wire connections if the motor rotate in the opposite direction.
